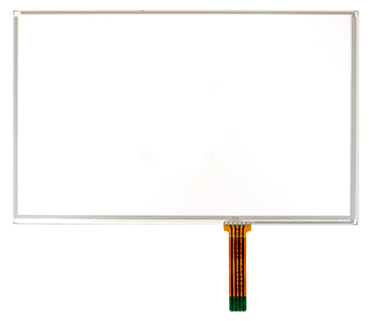

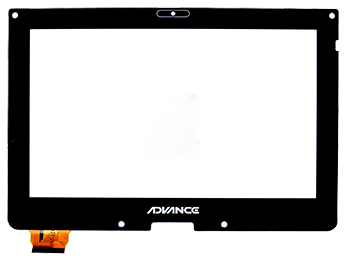

Manufactured Touch Panels
Epec Engineered Technologies offers a full range of high quality touch panel technologies and sizes designed to fit a wide range of applications and LCD sizes.
Our product range consists of 4-wire, 5-wire, 8-wire and capacitive touch panels. As a full service touch screen provider, we offer controllers and drivers that have been designed and developed specifically for our touch panel products.
In addition to our standard products, Epec can also design and manufacture custom touch screens to meet your unique LCD size and application. Our touch panels are designed and manufactured to the highest standards. Manufacturing occurs in class 10,000 cleanrooms. Throughout the process strict assembly procedures are followed to ensure total and effective quality control. Prior to shipping each touch panel is 100% electrically tested and visually inspected.
Epec is committed to delivers touch panel products to a variety of industries including: Medical, Retail and Industrial. Applications range from mobile communications products, industrial controllers, kiosks and household appliances.
Resistive Product Construction Options:
- Film to Film
- Film to Film to Substrate (PC, Acrylic)
- Film to Glass
Touch Panel Benefits:
- Excellent Optical Performances
- FPC Tail Technology
- High Readability
- Anti-Glare and Anti-Reflective Coatings
- Long Product Life
- Touch Accuracy
Epec offers a wide variety of touch solutions for all types of environments and applications. Our technical and sales staff can assist you in selecting the best touch panel technology for you.
Resistive Touch Panel Technical Specifications
Material:
- ITO Glass Thickness: .7; 1.1; 1.8; 2.0; and 3.0mm
- ITO Film Thickness: 0.188mm
- Surface Hardness: 0-3H
- Optical/Light Transmission: >80%
Temperatures:
- Operation Temperature: -20° - 60°C
- Storage Temperature: -20°- 70°C
Life Expectance:
- 4-wire/5-wire: >10,000,000
- 8-wire: >1,000,000
Electrical:
- Operating Voltage: 5V
- Insulation Impedance: >20M ohms (DC25V)
Standard Size Range:
- Standard 4-Wire Sizes 2.8” – 21”
- Standard 5-Wire Sizes 5.8” – 21”
- Standard 8-Wire Sizes 8.4” – 21”
